Pan Feeder System

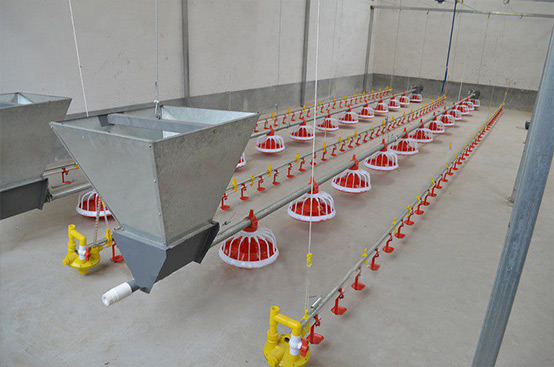

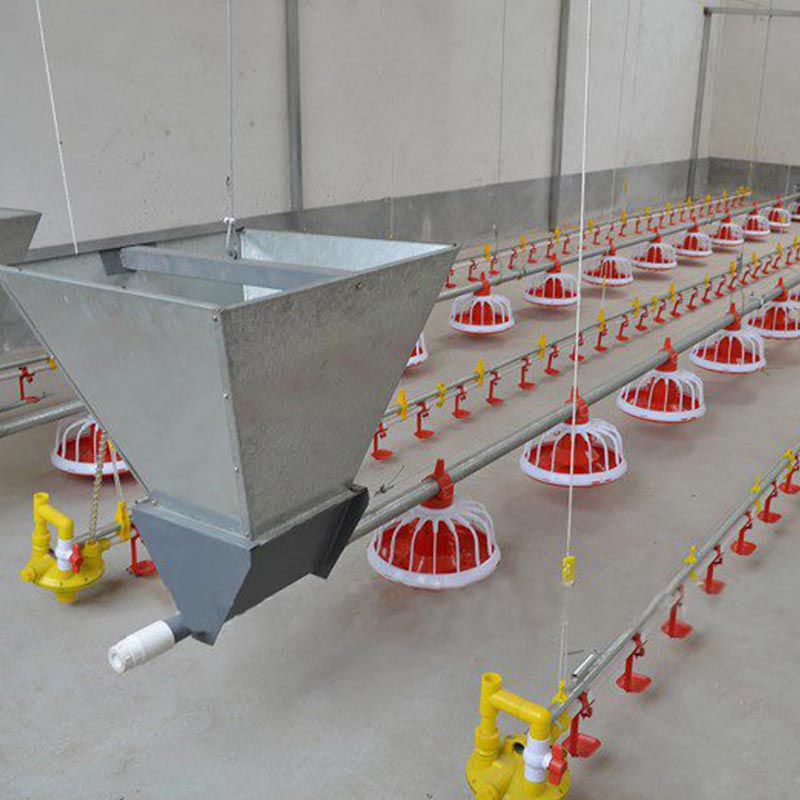

Layout of main feeding system

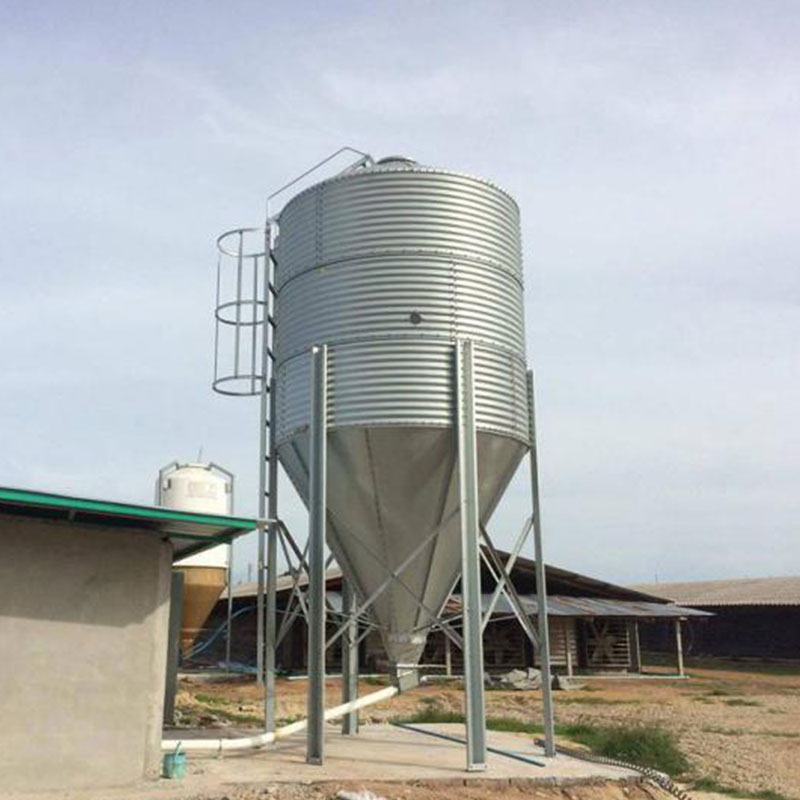

1、silo 2、pvctube 3、feed line 4、drop tube 5、drive motor

Broiler feedline system composing

● Hopper

● Delivery pipe and auger

● Feed pan

● Feed sensor and drive motor

● Hang piece

● anti-roost piece

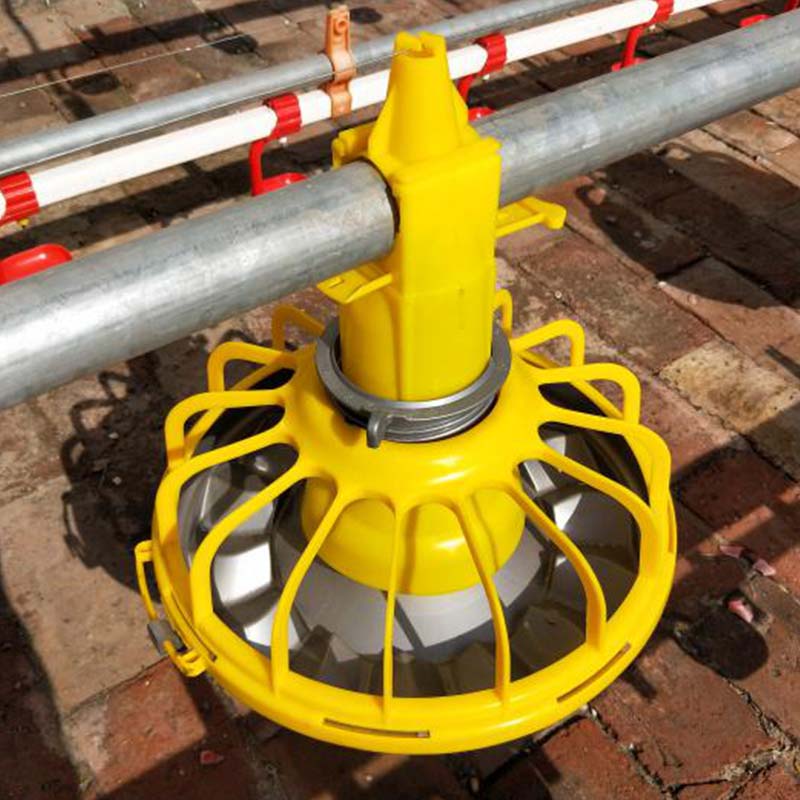

Feed Pan

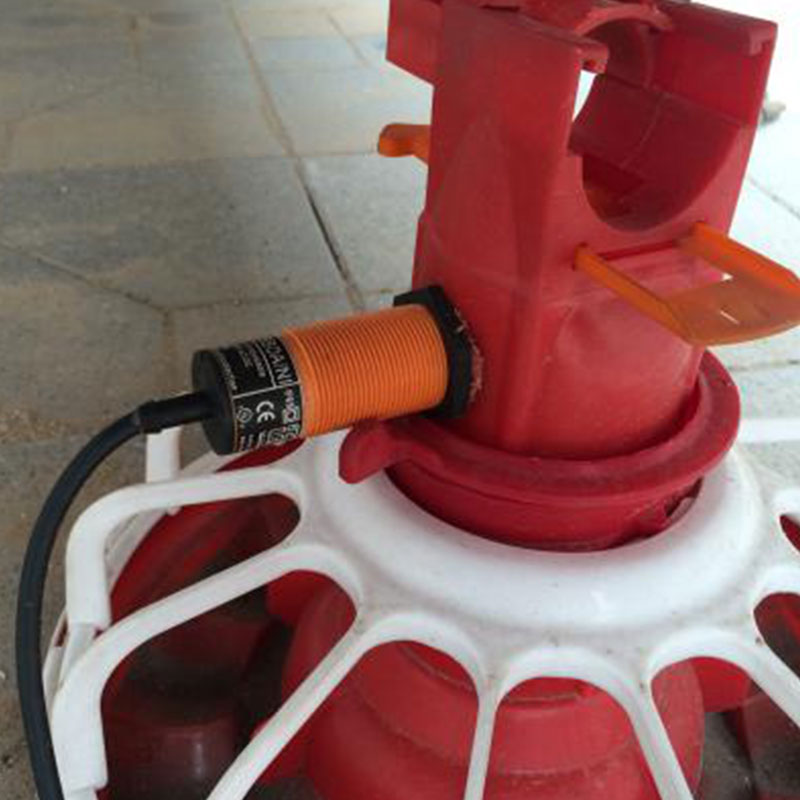

Sensor

Anger

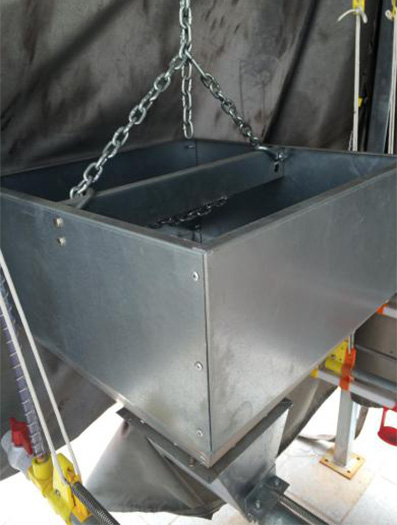

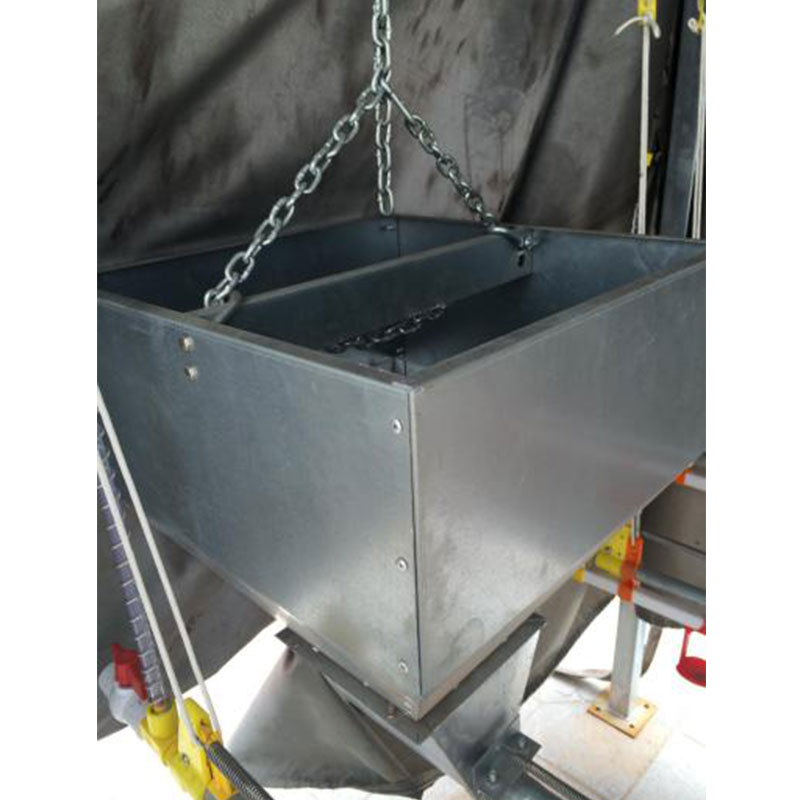

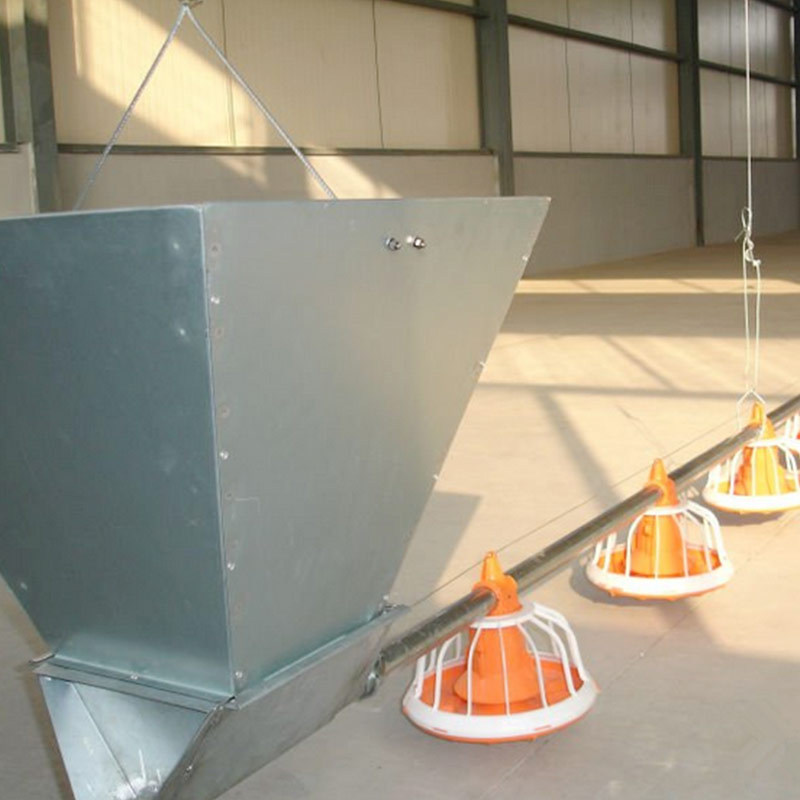

Hopper

Features

● Feed pan has 14Grills and 16 Grills, can be manual and automatic adjusted.

● Slide shutter-off can adjust feed amount from complete open to complete close.

● Adjusting the feeding amount convenient, fast and accurate. After pan is assembled, to hold its grill, rotate up and down and fix position when regulating.

● Pan plate can be disassembled on the ground working as specialy pan for 0-7 days old chicken.

● V-pan plate design can reduce feed storage at pan bottom. Bird can have fresh feed every day. This design can also prevent bird from staying on the plate too long.

● Edge of pan plate tilt towards the center which can avoid the waste of feed.

● Smooth edge can prevent the bird craw from hurt and make sure safety and comfort feeding.

● Assemble type of the pan in the pipe can be fixed or swing.
