How does a novice chicken raiser determine how much chicken-raising equipment he needs

It is difficult for beginners to determine the budget for raising chickens, mainly because they do not know what equipment is needed to raise chickens. First of all, we should know the area of the chicken house, and then we need to determine what type of chickens we plan to raise, broilers or layers? and finally determine whether to raise it in a cage or flat. Different breeds of chickens require different breeding equipment. Let's discuss the broiler flat-raising breeding equipment.

The breeding of broilers generally adopts flat farming, and of course, cages are also used. The necessary equipment for flat-raising chicken farming is as follows:

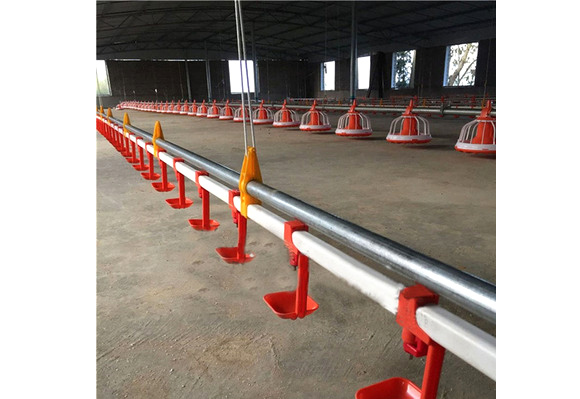

1. Nipple drinking system

The nipple drinker is a closed type drinker with many advantages, the water quality is not easy to be polluted, it can reduce the spread of diseases, the evaporation is small, and it has a wide range of adaptability, and it does not need to be cleaned after use, reducing labor intensity and saving water. It can overcome the shortcomings of open drinking fountains and is gradually recognized by people. However, it is more difficult to install and debug than other drinking fountains. Good quality (products from regular manufacturers) cost a lot, while poor quality ones are low in cost, but they are unreliable in use, and water leakage often occurs, making the environment of the chicken house humid.

Nipple drinkers often use drip cups to catch the water leaking from the nipple drinker. When there is water in the cup, chickens drink from the cup, and when there is no water, they drink from the contact rod of the nipple drinker.

There should be anti-perch steel wires and pulse electric shocks on the water supply line to prevent chickens from stepping on the water supply line. After the installation is completed, water must be supplied. The chickens use their beaks to peck. After pecking out the water, they slowly form a conditioned reflex, and they can drink at any time when they are thirsty. If the water is not supplied in time after it is installed, the chicken will not be able to peck the water, which will affect future drinking. When using nipple drinkers for flat-raising chickens, attention should be paid to the installation height. The hanging height should be adjusted according to the age of the chickens. Generally, it is required to exceed the chicken head by 1 ~ 3cm(0.39-1.18 inch). Each nipple drinker can be used for 3~6 adults or 10~20 chicks.

In order to ensure that chickens can drink fresh water at any time, it is best to use an automatic water supply device. The working water pressure of the nipple drinker is low, and it is often used in conjunction with a pressure regulating valve or a water tank to adjust the water pressure to suit the needs of chickens of different ages. The suitable water pressure is: 14.7~24.5kPa for chicks; 24.5~ 34.3kPa. To avoid the phenomenon that the water pressure is too high or too low, the chicken cannot drink water or the nipple drinker leaks. In addition, the nipple drinker cannot be used within 20 days after the chicken is cut off, because the beak is sore and dare not peck.

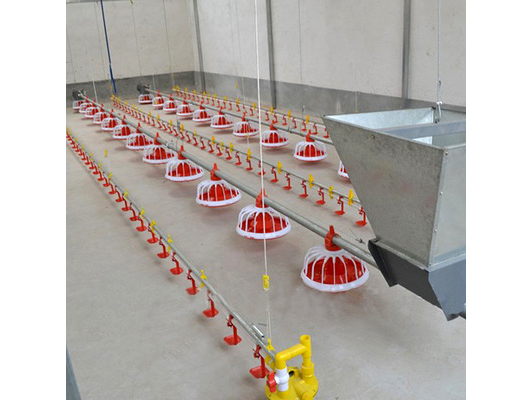

2. Automatic feeding system

It is mainly composed of a feed tower, feeding pans, conveying pipe, auger, motor and feed level sensor. At present, the feeding line system used in many chicken farms will have two systems: the main feeding line and the auxiliary feeding line. The capabilities and specifications of each of the two systems vary. Main feeding line system is composed of a feed tower, feed conveying pipe, auger, motor and feed level sensor. Its main function is to transport the feed in the feed tower to the hopper of the auxiliary feeding line, and there is a feed level sensor to automatically control the conveying switch of the motor to achieve the purpose of automatic feeding. Auxiliary feeding line system consists of a hopper, a feeding pipe, an auger, a feeding pan, a suspension lifting device, a motor and a feed level sensor. Its main function is to transport the feed in the hopper to each feeding pan to ensure the eating of the broilers, and the feed level sensor will automatically control the opening and closing of the motor to achieve the purpose of automatic feeding.

The feeding pan on each feeding line is generally divided into 16 grids, which can supply 50-70 chickens with a normal diet, and the feed is evenly distributed. It can effectively reduce the work intensity of chicken farmers, save breeding costs, and save time and effort.

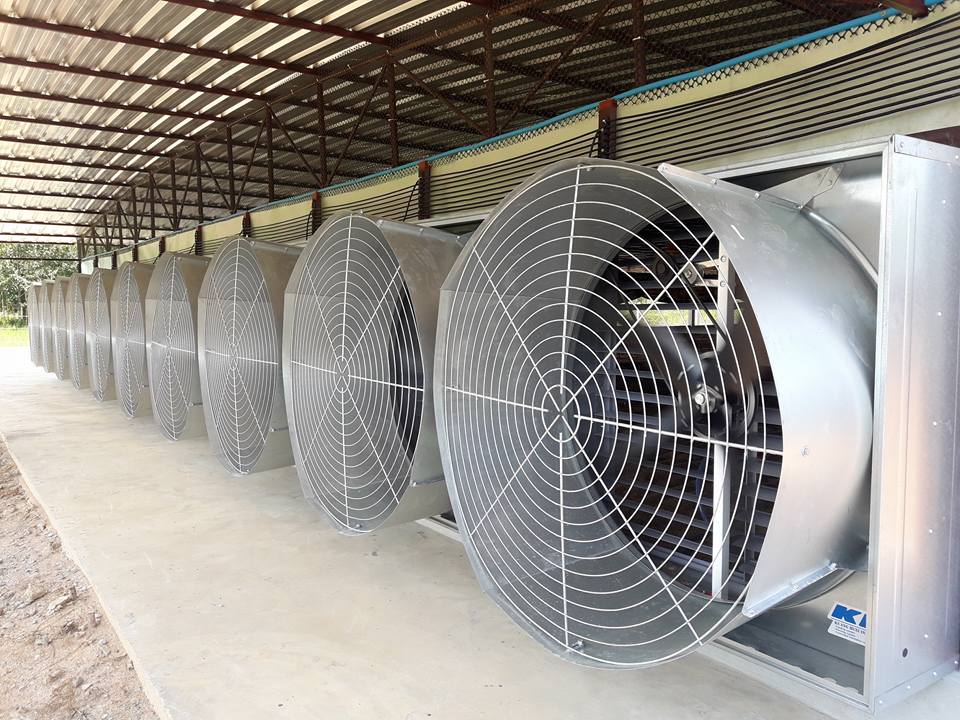

3. Ventilation equipment

The function of ventilation equipment is to foul air, moisture and excess heat from the chicken house, while replenishing fresh air. Closed chicken houses must adopt mechanical ventilation, which can be divided into horizontal ventilation and longitudinal ventilation according to the direction of airflow in the house. Horizontal ventilation means that the direction of airflow in the house is perpendicular to the long axis of the house, and longitudinal ventilation refers to a ventilation method in which a large number of fans are concentrated in one place so that the airflow in the house is parallel to the long axis of the house. Longitudinal ventilation has a better effect, which can eliminate and overcome the dead angle of ventilation in the house and the phenomenon of small and uneven wind speed during horizontal ventilation, and at the same time eliminate the disadvantages of cross-infection between chicken houses caused by horizontal ventilation. Commonly used ventilation equipment in chicken houses are ventilation fans and cooling pads.

4. Environmental control equipment

Real-time automatic control of temperature, humidity, ventilation, etc. in the poultry house, the purpose is to provide enough fresh air for the poultry house, discharge excessive waste gas and toxic gases (ammonia, carbon dioxide, etc.), to ensure a suitable environment in the poultry house Temperature and humidity to meet the needs of poultry growth.

The environmental control system can control the fan in real-time:

The air in the chicken house contains ammonia, hydrogen sulfide, carbon dioxide and other gases. If these concentrations are too large and the action time is long, the chicken's physique will deteriorate, the resistance will decrease, and the incidence rate will increase. Therefore, ventilation equipment such as fans should be installed to discharge dirty air in time and continuously enter fresh air. Through the real-time monitoring of the relevant gas concentration in the room through the ammonia, hydrogen sulfide, carbon dioxide and other gas sensors in the chicken house, when the concentration reaches a certain level, the chicken house breeding environment control system will comprehensively analyze the temperature and humidity and automatically start the fan and other equipment to protect the air circulation and freshness in the chicken house.

The environmental control system can control the light in real-time:

The light intensity in the chicken house farm is adjusted to ensure sufficient light time. Sufficient light time is an important factor to ensure the health and rapid growth of chickens. For cloudy chicken houses with dark light or insufficient sunlight time in winter, auxiliary lighting should be appropriately increased to make up for the lack of light due to weather and seasonal factors. The light intensity in the chicken house can be adjusted freely through the automatic light intensity adjustment function in the chicken house breeding environment control system.

The host of the chicken house breeding environment control system can generally be equipped with 10 channels of fans, 1 channel of cooling pad, and 1 channel of spraying, and multi-functional joint control to achieve real intelligent control of the environmental state. The chicken house breeding environment control system can set manual control or choose temperature control or time control according to customer needs, and the control method is flexible and convenient.

5. Heating equipment

In winter, before the chickens are out of temperature, when the temperature of the chicken house during the breeding period is too low, it can be heated by coal-fired stoves, heat preservation lamps, flue heating, heaters and other equipment. When choosing heating equipment for raising chickens, it is necessary to consider factors such as the site of the chicken house, the actual needs, the heating speed of the heating equipment, the size of the coal consumption, and whether the air can circulate smoothly.

The following equipment can be configured if economic conditions are available:

1. Manure cleaning equipment

The farmer can spread the manure floor and make a manure ditch under the floor. The automatic manure cleaning machine can automatically clear the manure and can be timed, thus ensuring the environment of the chicken house, greatly reducing the labor intensity, and giving the chickens a good air environment.

2. Incubation equipment

Incubation equipment refers to the general term for the items needed in the incubation process, including: incubators, hatchers, incubator accessories, special items for incubators, heating equipment, humidification equipment, and various measurement systems, etc. If the farmer wants to hatch the chicks by himself, he can configure the incubator.

3. Disinfection equipment

Agricultural sprayers, air pumps, etc.

4. Immunization and treatment equipment

Consecutive syringes, lancets, etc.

After we have determined the equipment needed for raising broilers, we can determine how much equipment to use according to the area of our chicken coop and the number of chickens, and then find the production company for a quotation. Phoenix breeding equipment company is a professional manufacture of drinking and feeding systems for poultry and livestock. We provide free chicken house design, and we will quote you with tost sincere service and the most affordable price. Farmers are welcome to come to consult.
