Elbow Chicken Feeder Instructions

Elbow Feed Instructions

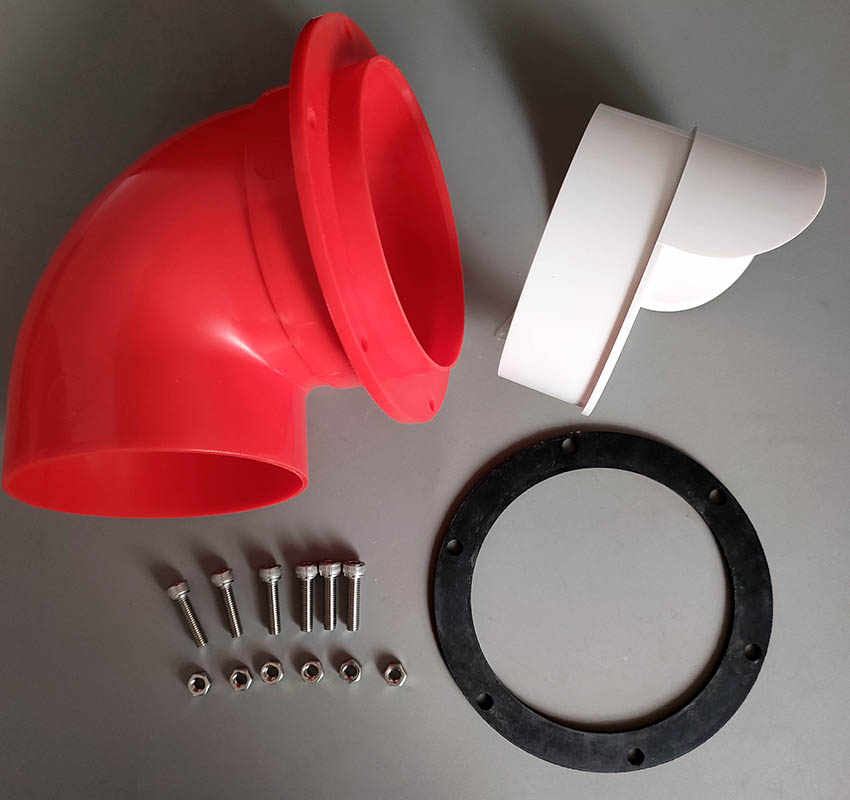

Parts list：Feed port*1pc, Screw*6pcs, Rubber gasket*1pc, Rain hood*1pc.

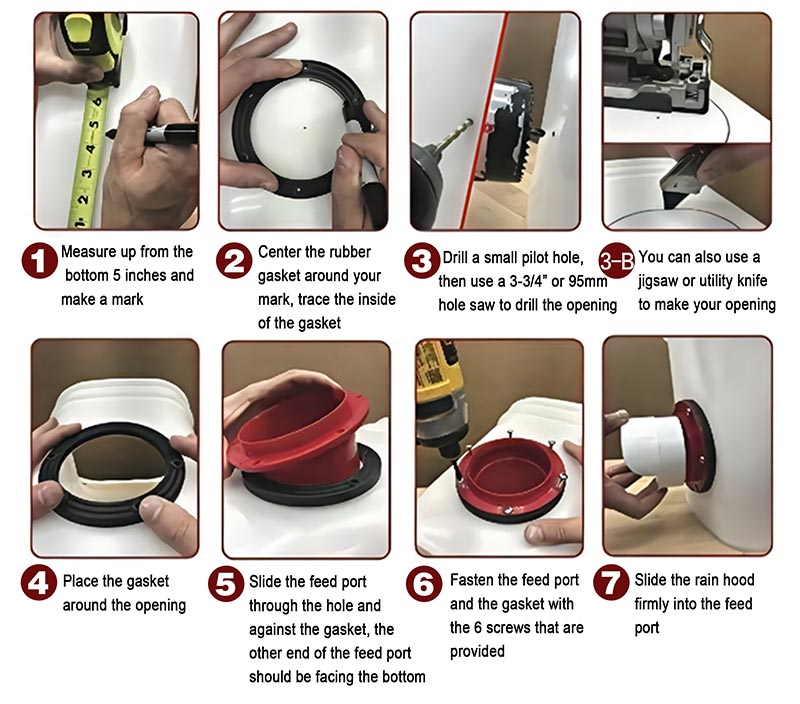

Installation step:

Step #1) Measure up from the bottom 5 inches and mark a mark;

Step #2) Center the rubber gasket around your mark, trace the inside of the gasket;

Step #3) Drill a small pilot hole, then use a 3-3/4” or 95mm hole saw to drill the opening. You can also use a jigsaw or utility knife to make your opening;

Step #4) Place the gasket around the opening;

Step #5) Slide the feed port through the hole and against the gasket, the other end of the feed port should be facing the bottom;

Step #6) Fasten the feed port and the gasket with the 6 screws that are provided;

Step #7) Slide the rain hood firmly into the feed port.

Phoenix Breeding Equipment Company offer all kinds of poultry breeding equipments. If you plan to purchase chicken feeders or other poultry breeding equipments , please contact us. We offer good quality, good price, and good service. Looking forward to doing business with you!
